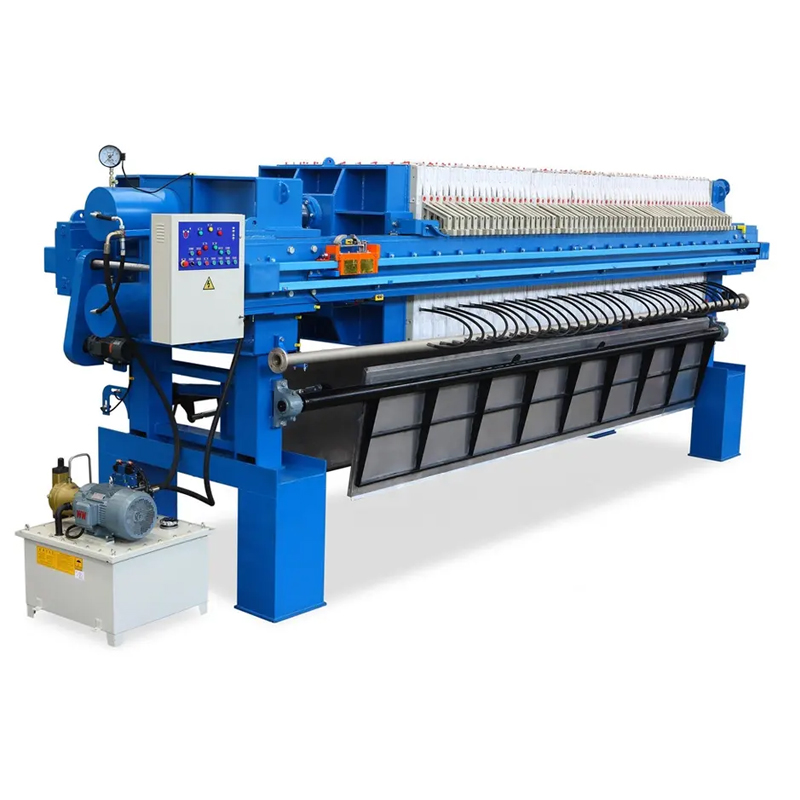

The plate and frame filter press uses the compression of the plate and frame to discharge the water in the sludge through the filter cloth, achieving the purpose of dehydration. It mainly consists of a concave filter plate, a frame, an automatic pneumatic closed system measuring plate suspension system, a filter plate vibration system, an air compression device, a filter cloth high-pressure flushing device, and a photoelectric protection device on one side of the body.
Product Features
① Simple structure, easy operation, stable operation, and convenient maintenance.
② The selection range of filtering area is flexible and covers a small area.
③ Strong adaptability to materials, suitable for various small and medium-sized sludge dewatering treatment occasions.
④ The filter cake has high solid content, low energy consumption, and high efficiency.
Advantage
① The material adopts an improved high impact resistance formula, which further enhances the impact resistance and prolongs the service life of the filter plate while ensuring its original strength (achieving the best combination of strength and toughness).
② The side of the filter plate using sealing technology adopts an open channel to reduce water flow resistance and make the liquid flow smoother.
③ The filtration side distribution method of the filter plate is more reasonable and scientific, and the mud cake formed through filtration and pressure discharge is more uniform, with no dead corners during washing, and the flow rate of filtrate and detergent is faster.
Model & Specifications
| Model | Filter area(m2) | Theoretical filter chamber volume(m3) | Number of filter plates(pcs.) | Filter plate size(L * W mm) | Filter cake thickness(mm) | Filtration pressure(Mpa) | Power(KW) |
| LD-20/800 | 20 | 3.2 | 20 | 800*800 | 32 | 0.6 | 1.5 |
| LD-40/800 | 40 | 6.4 | 40 | ||||
| LD-50/800 | 50 | 8 | 50 | ||||
| LD-100/1250 | 100 | 15 | 38 | 1250*1250 | 30 | 4 | |
| LD-140/1250 | 140 | 21 | 54 | ||||
| LD-160/1250 | 160 | 24 | 62 | ||||
| LD-200/1500 | 200 | 30 | 48 | 1500*1500 | 30 | 4 | |
| LD-250/1500 | 250 | 38 | 60 | ||||
| LD-280/1500 | 280 | 42 | 67 |
