This series of horizontal decanter centrifuges is a separation equipment that continuously separates suspensions using centrifugal sedimentation.
Continuous feeding, separation, and unloading at full speed, suitable for solid-liquid separation, particle size classification, and mixed liquid clarification of various suspensions.
It has the advantages of large processing capacity, low energy consumption, compact structure, convenient maintenance.
And is particularly suitable for suspensions with difficult regeneration of filter cloth and significant changes in concentration and particle size.
It can meet the requirements of hundreds of material processing.
Advantage
1. The separation factor is high, achieving stepless adjustment of drum speed and differential speed to ensure the separation effect of materials.
2. Dual motor and dual frequency conversion design (single motor and single frequency conversion can be designed according to customer needs)
3. Adjustable liquid level height, adjust the liquid level height of the centrifuge according to the different properties of the material.
4. The technology adopts advanced differential and imported bearings, significantly extending the lifespan of drum components.
5. The drive motor adopts a frequency converter to achieve soft start and stepless adjustment of drum speed.
6. The main components adopt optimized design, and the drum and screw adopt advanced dynamic balance technology to perform three-dimensional balance.
7. The use and maintenance of centrifuges are more convenient, improving maintenance efficiency.
Application
1. Environmental protection industry
a. Municipal sewage treatment plant
b. Industrial sewage treatment plant
c. Building mud oar
d. River and lake dredging treatment, river and lake algae treatment, urban pipeline cleaning water, etc;
e. Sludge dewatering in steel mills and cold rolling mills
f. Oil sludge treatment in refineries
2. Food industry
a. Fruit juice production process
b. Lactose production process
c. Licorice processing process
d. Cellulose separation
e. Distillery lees processing
f. Starch recovery
3. Chemical, pharmaceutical, and biological industries
a. PVC production
b. Potassium chloride production
c. Preparation of hydrochloride
d. Three phase separation of coal tar
e. Preparation of calcium citrate
f. Purification of Traditional Chinese Medicine Residues
4. Wine industry
Separation of grape juice and dregs
5. Sugar industry
a. Treatment of Beet Cleaning Water
b. Treatment of sugarcane manufacturing process
6. Plastic recycling
Plastic crushing particle separation
7. Metal and non-metallic mining industry
Metal ore slurry, talc powder, mica flakes, gypsum, pearl powder, etc
8. Other industries
a. Processing of by-products from slaughterhouses
b. Animal blood processing
c. Herbal processing
d. Classification of kaolin

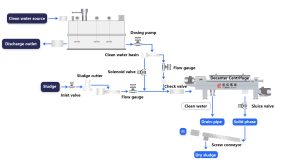

Technological process
Model & Specifications
| Model | Drum Parameters | Power(KW) | Size(L*B*H)(mm) | Weight(KG) | |||
| Diameter（mm） | Length（mm） | Speed（m/min） | “G” Fore | ||||
| LD250A | 250 | 1075 | 3800 | 3000 | 7.5/3 | 2200*1010*720 | 1000 |
| LD300A | 300 | 1290 | 3500 | 3200 | 11/4 | 3150*770*1100 | 1600 |
| LD360A | 360 | 1560 | 4500 | 4080 | 22/7.5;18.5/5.5 | 3640*880*1280 | 2400 |
| LD450A | 450 | 1990 | 3200 | 2580 | 37/11;30/7.5 | 4250*975*1365 | 3400 |
| LD520A | 520 | 2250 | 2800 | 2280 | 55/15 | 4809*1200*1595 | 5000 |
| LD550A | 550 | 2450 | 3200 | 2800 | 55/15 | 4900*1350*1700 | 5600 |
| LD650A | 650 | 2800 | 3000 | 3280 | 75/18.5;90/22 | 5595*1350*1548 | 7860 |
| LD760A | 760 | 3461 | 3000 | 3830 | 110/37;132/45 | 5800*2250*1650 | 16000 |
