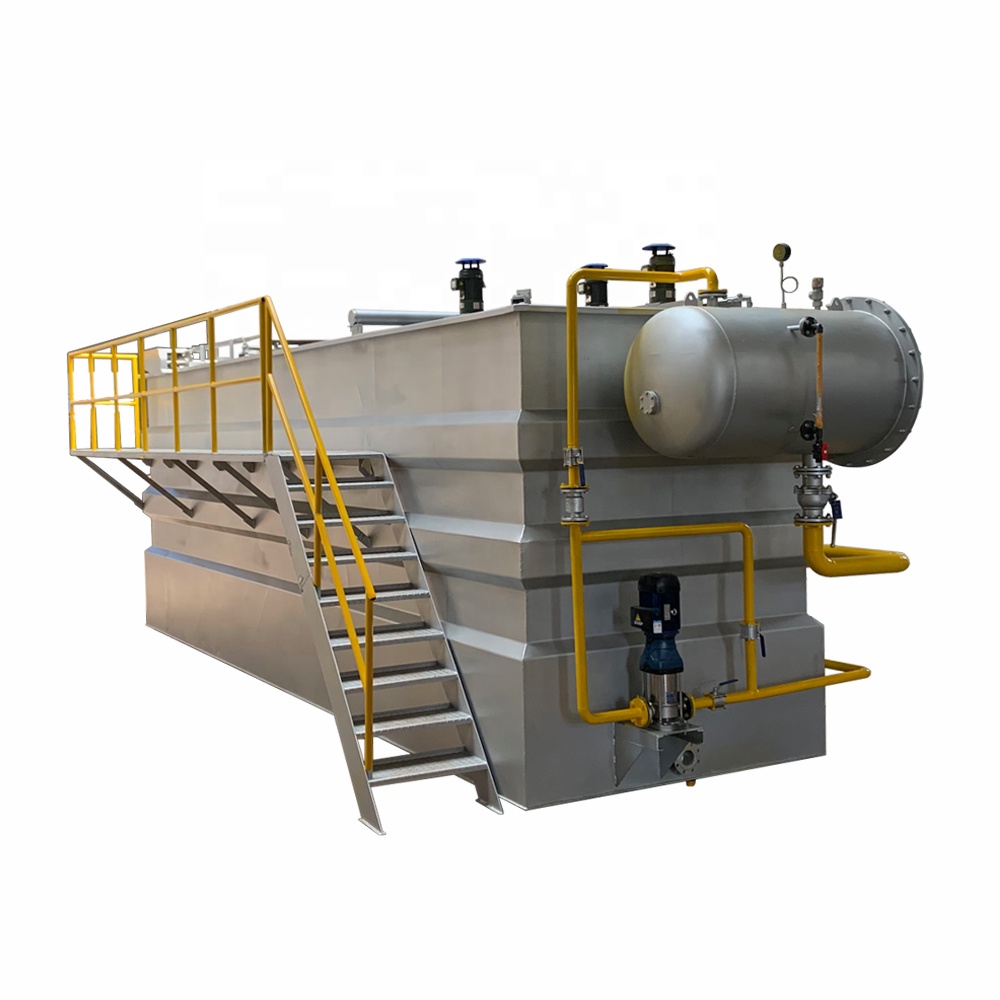

The dissolved air flotation machine is a rectangular steel structure. The main components are composed of dissolved air pump, air compressor, dissolved air tank, rectangular box, air flotation system, and mud scraping system.

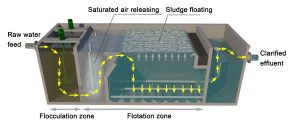

Working Principle
The dissolved air tank produces dissolved air water, and the dissolved air water is decompressed and released into the water to be treated by 5 cubic meters of advective air flotation through the releaser.
The air dissolved in the water is released from the water to form tiny fine bubbles of 20-40um , which combine with the suspended matter in the sewage to make the suspended matter less specific than water, and gradually float to the water surface to form scum. There is a scraper system on the water surface to scrape the scum into the sludge tank. The clean water enters the clean water tank from the lower part through the overflow tank.
Applications
DAF is a proven,and effective physical-chemical technology commonly used for many industrial and municipal applications,including:
·Product recovery and reuse
·Pre-treatment to meet sewer discharge limits
·Pre-treatment to reduce loading on downstream biological systems
·Polishing of biological treatment effluent
·Removing silt and grease from industrial water
DAF is used extensively in the following industries:
·Meat,poultry,and fish processing
·Dairy industry
·Petrochemicals
·Pulp and paper
·Food and beverage
Key DAF Features
1. The bubbles generated by the dissolved air tank are small, the particle size is 20-40um, and the flocs are firmly adhered, which can achieve a good air flotation effect;
2. Fewer flocculants are used and the cost is reduced;
3. The operating procedures are easy to master, the water quality and quantity are easy to control, and the management is simple.
4. Equipped with a backwash system, the releaser is not easy to be blocked.
5. Total suspended solids (TSS) reduction up to 97%.
6. Chemical oxygen demand (COD) removal up to 85%.
Model & Specifications
| Model | Size(mm) | Capacity(m³/h) | Power(KW) | Unit Weight(KG) | Operating Weight(KG) |
| GFH-5 | 3000*1000*2000 | 5 | 2.75 | 2500 | 8500 |
| GFH-10 | 4000*1000*2000 | 10 | 4.65 | 2900 | 14300 |
| GFH-15 | 4000*2000*2000 | 15 | 4.65 | 3700 | 19700 |
| GFH-20 | 5000*2000*2000 | 20 | 4.65 | 4500 | 26500 |
| GFH-25 | 6000*2000*2000 | 25 | 6.05 | 5100 | 31500 |
| GFH-30 | 6000*2500*2250 | 30 | 6.05 | 5900 | 38300 |
| GFH-35 | 6000*2500*2500 | 35 | 6.5 | 6300 | 41300 |
| GFH-40 | 6000*3000*2500 | 40 | 7.5 | 7500 | 51180 |
