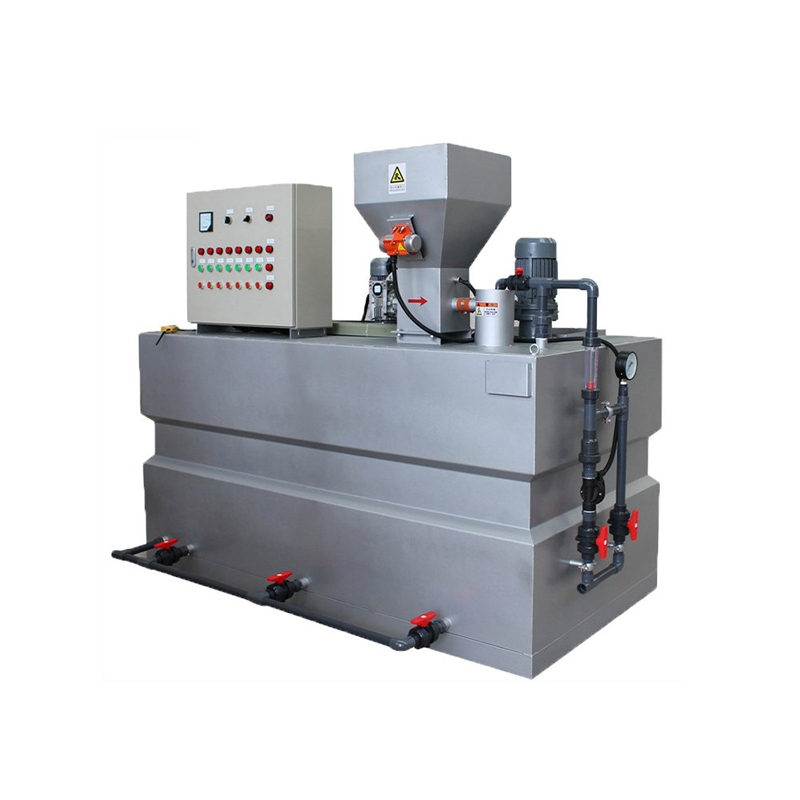

The Automatic flocculants dosing device is widely used in auxiliary equipment for municipal water treatment and sewage sludge treatment. It can continuously and efficiently complete the compounding and mixing of polymers to obtain a homogeneous active polymer solution.
Working Principle

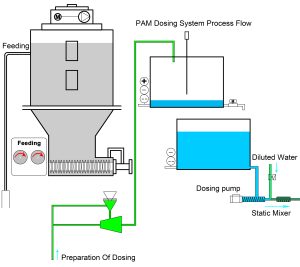

The dosing device adopts a jet mixer, which uses high-speed hydraulic power to disperse the agent or powder particles, increase the fineness, improve the contact between the agent or powder particles and water, increase the penetration area, and reduce the dissolution time; The equipment is composed of three overflow tanks, namely, preparation, curing and dosing. The gravity and solubility are used to generate the specific gravity difference of the solution, and the dissolved and undissolved are automatically separated, and then stirred by a low-speed mixer to improve the uniformity of the solution.
Product Features
1. Three tanks in one continuous preparation, easy to operate and maintain.
2. Dry powder or liquid polymer can be double-fed to meet different needs.
3. PLC runs automatically , saving labor.
4. The dosage of the medicine can be done by a screw pump or a metering pump (the former is conventionally used), and the metering is accurate and adjustable.
Model & Specifications
| Model | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| Capacity（L/H） | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size（mm） | 900*1500*1650 | 900*1625*1750 | 1000*2440*1800 | 1220*2440*1800 | 1220*3200*2000 | |
| Dry powder feeding motor power（KW） | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| Mixer |
Diameter（mm）
|
250 | 250 | 250 | 250 | 250 |
| Speed（m/min） | 96 | 96 | 96 | 96 | 96 | |
| Power（KW） | 0.55*2 | 0.55*2 | 0.55*2 | 0.55*2 | 0.55*2 | |
| Dosing Pump | Capacity（m³/h） | 1 | 1 | 1.5-2.0 | 1.5-2.0 | 3.0-5.0 |
| Lift（m） | 20 | 20 | 20 | 20 | 20 | |
| Power(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
