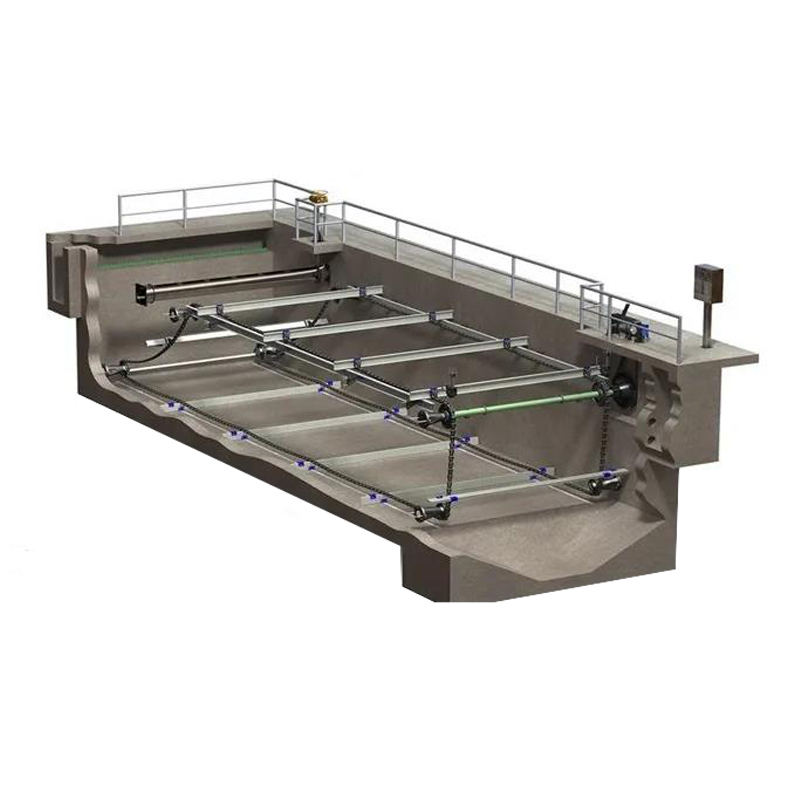

The chain-plate mud scraper is mainly used for continuous sludge discharge at the bottom of the horizontal flow sedimentation tank, sand settling tank and oil separation tank in the sewage treatment plant, and can continuously discharge oil dirt or remove scum on the water surface, especially suitable for sedimentation tanks with more sediment.
Product Features
1. The number of scrapers is large, and the scraping ability is strong; The moving speed of the scraper is slow, and it has little disturbance to the sewage, which is conducive to the sediment.
2. The scraper moves continuously in a straight line in the pool, and does not need to reverse, so it does not need a travel switch. The drive device is located on the platform at the top of the pool, and the power distribution and maintenance are very simple.
3. It can also be used as a skimmer without additional mechanism.
4. There are no heavy structural parts and supports in the system, and the system energy consumption is low.
Model & Specifications
| Model | NL 3 X L | NL 4.5 X L | NL 5 X L | NL 6 X L |
|
Pool Width(m)
|
3 | 4.5 | 5 | 6 |
| Pool Length(m) | 8-16 | 8-16 | 8-16 | 8-16 |
| Pool Depth(m) | 3.5 | 3.5 | 3.5 | 3.5 |
|
Drive Power(KW)
|
2.2 |
2.2
|
2.2
|
3 |
| Moving Speed of Scraper(m/min) | 1 | 1 | 1 | 1 |
| Scraper Spacing (m) | 2 | 2 | 2 | 2 |
| Inlet turbidity(mg/L) | <<500 | <<500 | <<500 | <<500 |
